Integration guide

Documentation

Connect Tenable Vulnerability Management to SourceGuard

Tenable VM is a native scan source, not an import. Its results enter the same unified risk view as our binary findings — closing the supply-chain blind spots that network and host scanning alone leave open.

After this guide you can

Enable the Tenable VM plugin as a controllable scan source
Establish the API connection with your Tenable credentials
Align triggered scans with your existing scan templates
Read correlated Tenable and binary findings in one place

Contents

Step 1

Access the Plugins page

1.1

After logging in, click Plugins in the left navigation bar.

1.2

Supported external scanning tools are listed, including the Tenable Vulnerability Management Centre plugin.

Tenable VM results are incorporated into the unified risk view alongside SourceGuard's binary analysis — they are not kept in a separate tab.

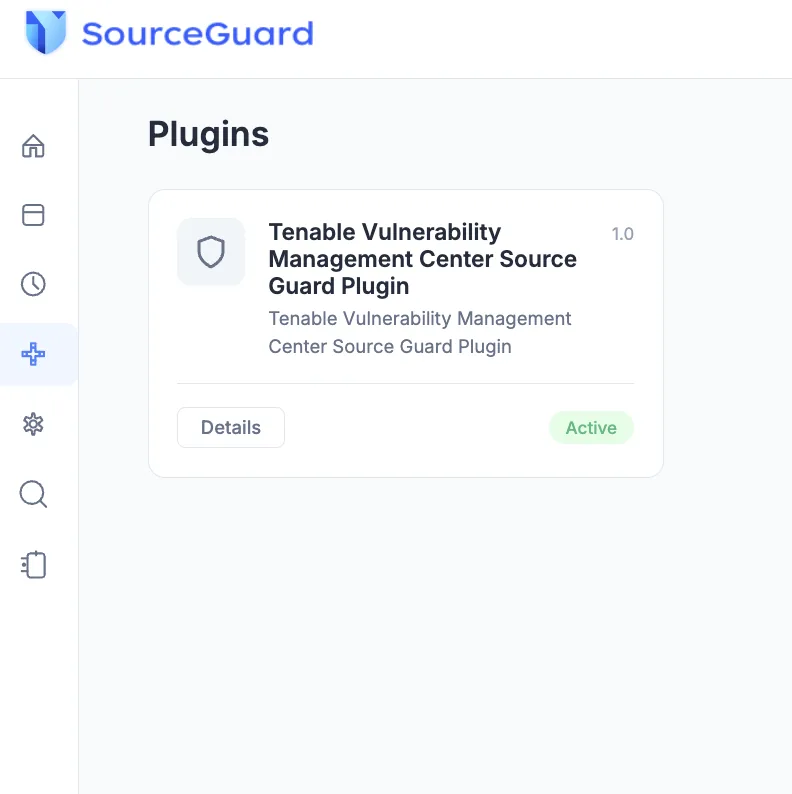

Plugins page listing supported external scanning tools, including the Tenable Vulnerability Management Centre plugin — Plugins page.

Step 2

Configure settings

On the plugin card, click Details to open the Edit Plugin Configuration window.

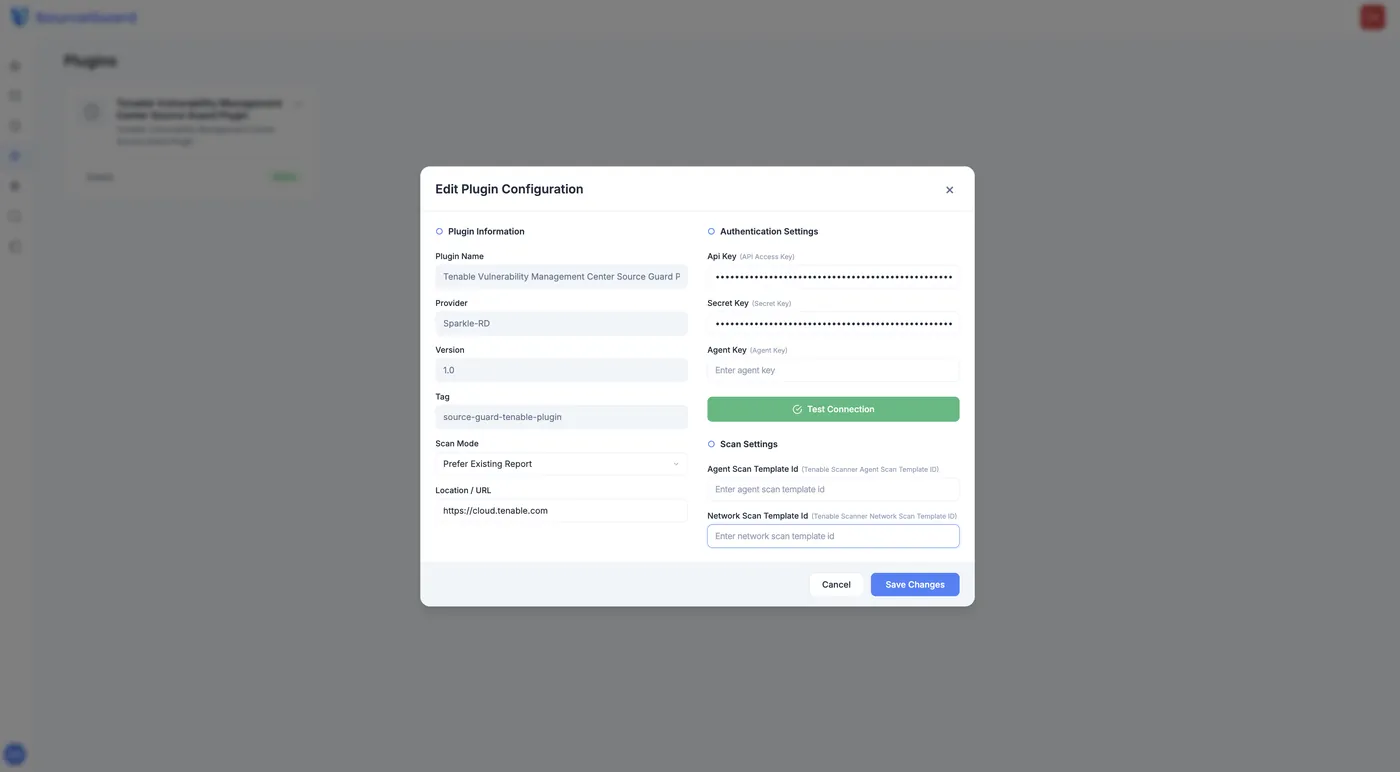

Edit Plugin Configuration window for entering the Tenable Vulnerability Management URL, authentication keys and scan settings — Edit Plugin Configuration.

Plugin information

Scan Mode → Prefer Existing Report to avoid redundant scans.

Location / URL → https://cloud.tenable.com or your private URL.

Authentication

API Key, Secret Key and Agent Key, taken from the Tenable backend.

Scan settingsOptional

Agent and Network Scan Template IDs, to override default behaviour.

Step 3

Test and save

3.1

Click Test Connection to verify the integration.

3.2

Once successful, close the window. SourceGuard begins synchronising data according to your scan mode.

Step 4

Create a project and assign the scanner

4.1

Click Create Project on the Project Management page.

4.2

Select or define the system category the project belongs to.

4.3

Set the baseline risk level and importance score.

4.4

Select the Tenable Vulnerability Management Centre plugin as scanner.

4.5

Name the project clearly — reporting and stakeholder alignment depend on it.

Create Project dialog with the Tenable Vulnerability Management Centre plugin selected as the scanner — Create Project.

Prefer existing report

Reuses the latest available Tenable report. Faster, and avoids redundant scans.

Always trigger scan

Forces a fresh scan every run. Most current data, but slower and consumes Tenable capacity.

Step 5

Add assets and launch the scan

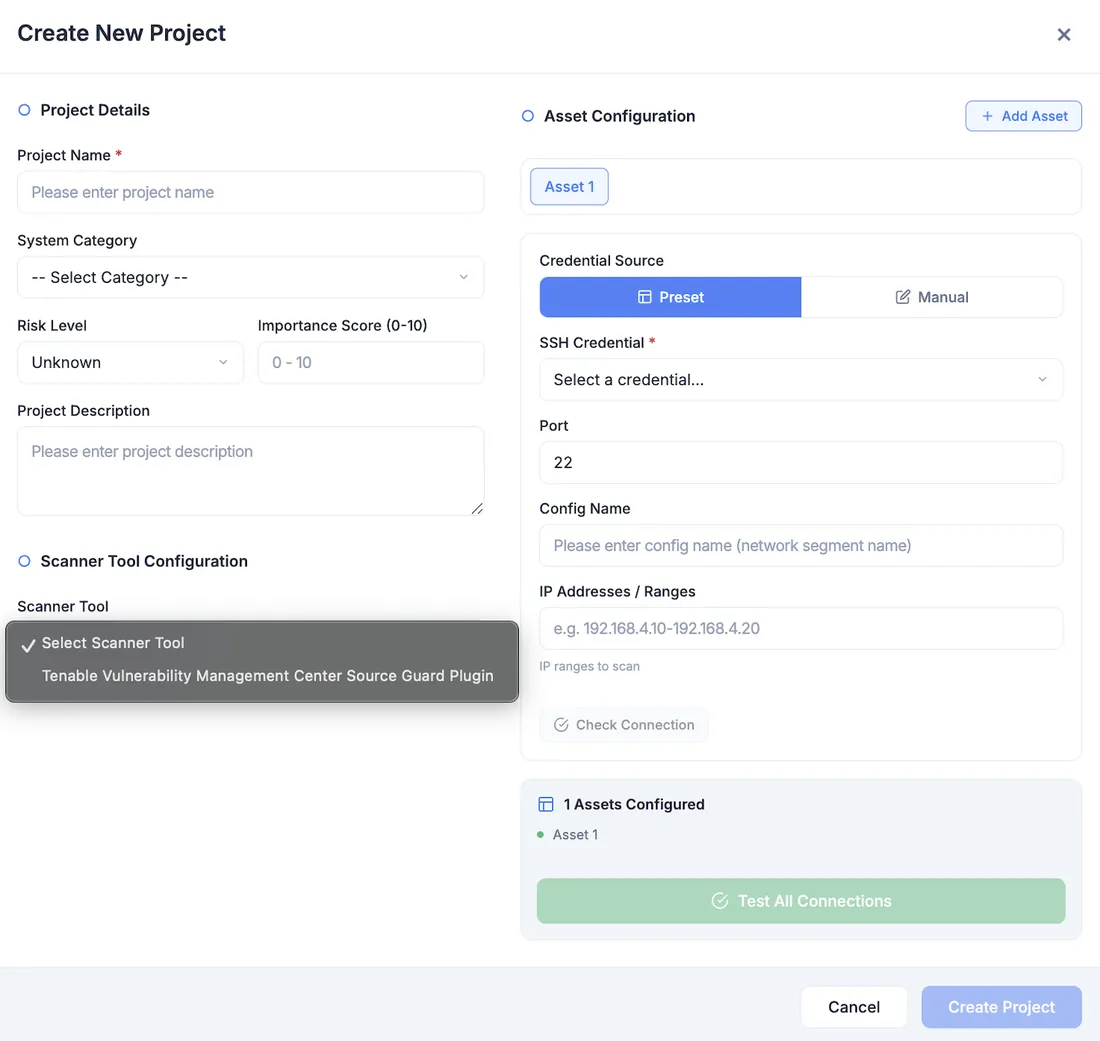

Asset settings

Credential source — preset or one-off manual.

SSH credential and port number.

Config name for the segment or asset group.

IP range, e.g. 192.168.4.10-192.168.4.20

Validate

Check Connection per asset, or Test All Connections in bulk.

Finalise

Click Create Project or Save Changes to start the scan job.
